POE-152 - IEEE 802.3af Power Over Ethernet Injector (End-Span)

POE-152 - IEEE 802.3af Power Over Ethernet Injector (End-Span)
POE-152 - IEEE 802.3af Power Over Ethernet Injector (End-Span)
£31.10
  • Stock: 5-7 Days
  • Model: POE-152
  • MPN: POE-152

Overview

PLANET POE-152 is an IEEE 802.3af Power over Ethernet Injector, which provides DC 48V over Ethernet cables. The POE-152 IEEE 802.3af Power over Ethernet Injector inserts DC voltage into Cat.5 cable, allowing the cable between the Injector (POE-152) and Splitter (POE-152S-5V/12V) to transfer data and power simultaneously. The maximum distance between the Injector (POE-152) and Splitter (POE-152S-5V/12V) is 100 meters. With POE-152 being installed, it combines the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3af Power over Ethernet Injector. And the IEEE 802.3af Power over Ethernet splitter divides the digital data and the power into two outputs.

Unlike the existing Power over Ethernet Injector, the POE-152 also provides 1000Mbps Gigabit Ethernet connection capability, except the 10/100Mbps Fast Ethernet connection capability.

With IEEE 802.3af Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Besides, to connect through the POE-152 and POE-152S-5V/12V, you can also have the benefits of cost saving, ease of networking planning and higher reliability. Upon any IEEE 802.3af devices being installed, the POE-152 or together with POE-152S-5V/12V can make the connection while migrating or splitting the power and the Ethernet digital packets, such as connecting the POE-152 to an IEEE 802.3af complied device, AP or IP phone.

Key Features

• Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3/802.3u/802.3ab
 10/100/1000Base-T
• Provides DC 48V power over RJ-45 Ethernet cable to device with Ethernet port
• LED indicators power input indication
• Distance up to 100 meters
• Auto-detects of POE IEEE 802.3af equipment and devices from being damaged by
 incorrect installation
• Works with EIA568, category 5, 5e or 6 ,2/4-pair cables for 10Base-T or 100Base-TX
 and 1000Base-T
• EMI standards complies with FCC, CE class B

Applications

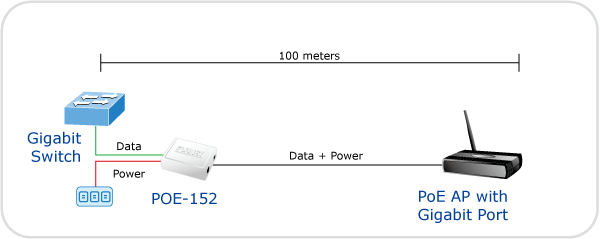

Connecting to IEEE 802.3af devices
Due to the capability of IEEE 802.3af standard, the POE-152 can directly connect with any IEEE 802.3af end-nodes like wireless access point, IP phones and Internet camera which support IEEE 802.3af In-line Power over Ethernet port.

Installation of IEEE 802.3af Injector and Splitter
For a place which is hard to find the power inlet, the POE-152 and POE-152S-5V/12V as a pair should provide the easiest way to power your Ethernet devices, such as PLANET ICA-110, Internet camera on the ceiling, or WAP-4000, wireless access point which is installed on the top of the building. It’s the same as the VIP-154PT, the IP phone used in office or home.


Specifications


Ethernet Connector2 x RJ-45 (1 for data + DC out, 1 for Data in)
Ethernet Data Rate10/100/1000Mbps (varies on Ethernet device attached)
Input Voltage DC 48V, 0.4A
Number of devices can be powered1
Ethernet Cable TIA/EIA-568, Category 5/5e/6 cable
LED Indicator 1 x power, 1 x POE ready / in-use
Operating Temperature 0~50 degrees C, 5~90% RH
Storage Temperature -20~70 degrees C, 5~90% RH
Dimensions (W x D x H)73 x 55 x 24 mm
Weight 50g
EmissionFCC Class B, CE mark
Standard Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3af Power over Ethernet
