VC-202A - 1-Port 10/100Base-TX + 1-Port BNC Ethernet over Coaxial Extender

VC-202A - 1-Port 10/100Base-TX + 1-Port BNC Ethernet over Coaxial Extender
VC-202A - 1-Port 10/100Base-TX + 1-Port BNC Ethernet over Coaxial Extender
£88.50
  • Stock: 5-7 Days
  • Model: VC-202A
  • MPN: VC-202A

*This Item is now EOL*

*For the Latest / New / Upgraded Version please see the Planet VC-232G*





Overview


Ethernet Distance Extension via Coaxial
PLANET VC-202A is a high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the VC-202A uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the VC-202A utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 3km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.



Cost-effective / Quick Upgrade Legacy Devices to All IP Networks
PLANET VC-202A Ethernet extender provides a quick replacement and smooth migration solution from existing analog system to full digital system. For example:
 • Upgrade analog camera to digital IP Camera
 • IP Digital Signage deployment
 • Cable TV to IPTV

The VC-202A is equipped with one RJ-45 and one BNC port to transmit the Ethernet data over the most widespread coaxial cable. Therefore, it is very suitable and costless for upgrading legacy devices to new digital devices of IP-based network because almost every house or block on the street could use the existing coaxial cable to transmit data to the Internet and the whole building could share the Internet line in the wide network area at a minimum cost. Reusing the existing cable instead of new wire can save extra wiring cost as the coaxial cable and Ethernet line are already available.

Easy Installation
There are two selectable models of the VC-202A, one is used for client side (CPE) and the other is for central side (CO). The VC-202A converter is a plug and play device without the need of configuring by software and is also compliant with all kinds of network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of individual port and the whole system.

Providing Superior Upstream and Downstream Transmission
The VC-202A defines asymmetric (Plan 998) and symmetric mode for the transmission of upstream and downstream signals. The symmetric mode provides similar transmission rate on both downstream and upstream. On the other hand, the asymmetric mode performs higher transmission quality in short range for central side (CO). In all, when the VC-202A is in symmetric mode, it provides better upstream performance, and when it is in asymmetric mode, it gives better downstream performance.

Features

• Compact in size, easy installation • Co-work with PLANET MC family Media Chassis (MC-700 / 1500 / 1500R / 1500R48)
• Supports extensive LED indicators for network diagnostics
• Selectable target band plan and target SNR margin
• Advantage of minimum installation time (simply by Plug-and-Play)
• Standalone transceiver for simple bridge modem application
• Supports up to 1,536 bytes packet size, IEEE 802.1Q VLAN tag transparent
• Half duplex back-pressure and IEEE 802.3x full duplex pause frame flow control
• DMT (Discrete Multi-Tone) line coding
• Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards
• One box design, CO / CPE selectable via DIP Switch
CO / CPE bridge solution Profile 17a• Cost-effective
• Defines Asymmetric (Plan 998) and Symmetric for the transmission of upstream and downstream signals

Applications


Community / Campus Surveillance and Security over IP

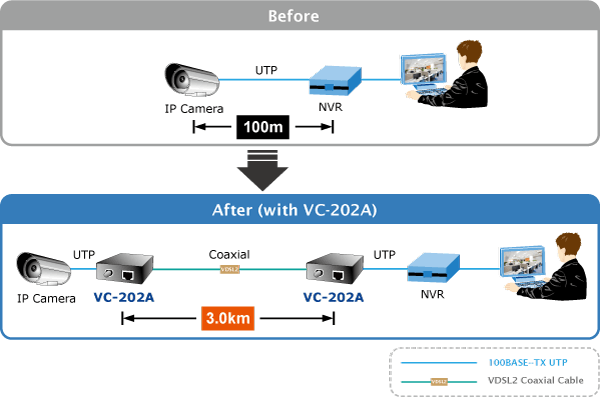

To take advantage of digital surveillance system and keep the benefits of coaxial cable, the VC-202A helps the community, campus and enterprises to upgrade analog camera system to IP camera surveillance without using additional new wires. The Extender is a switching architecture with one RJ-45 10/100Mbps Fast Ethernet port and one BNC Ethernet over Coaxial port. Just plug-in the UTP cable of IP camera to Ethernet port and the existing coaxial cable to the BNC connector. It is easy to deploy and extend the distance with signal conversion by transmitting the Ethernet data from the standard coaxial cable. Furthermore, with high transmit data rate, the VC-202A solution supports multiple IP cameras input for sharing in one coaxial cable to reduce the cost of cabling.


MTU / MDU / Hospitality Solution
IPTV, VOD and digital message broadcasting services are the worldwide hot trends, and more and more service providers have upgraded the client side devices from analog system to digital system gradually. The VC-202A will be the best solution because it provides cost-effective and high speed network services by utilizing the existing coaxial cable infrastructure. IP network installation is straightforward. With enough bandwidth, the 100/100Mbps symmetric capability of VC-202A makes many Multi-Media services on local Internet come true, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, distance education, and so on. It satisfies most of entertainment and communication layer. Meanwhile, this kind of infrastructure also minimizes the burden on the Internet.


Commercial Location Media Network and Electronic Billboards
More and more media network and electronic billboards are built in commercial locations to deliver information over office buildings, shopping centers and stations in the cities. Integrating with Set-Top Box and LCD TV, the VC-202A provides an immediate and interactive broadcasting system over direct Ethernet connection instead of constant content and data exchange by human resource. It can also be integrated with IPTV and Web TV. Through the remote management function, administrators can interrupt the TV program for the news and the commercials. It saves labor and gets better commercial effect.



Specifications


Hardware Specifications
Ports• 10/100Base-TX: 1 RJ-45, auto-negotiation and auto-MDI / MDI-X
• Coaxial: 1 BNC, female connector
DIP Switch4 position DIP switch
Functionality• CO / CPE mode select
• Selectable fast and interleaved mode
• Selectable target Band Plan
• Selectable target SNR mode
Encoding•DMT (Discrete Multi-Tone) line coding
 - ITU-T G.997.1
 - ITU-T G.993.1
 - ITU-T G.993.2 (Profile 17a Support)
LED Indicators• One Power
• 3 for Coaxial (BNC):
 - Green, LNK
 - Green, CO mode
 - Green, CPE mode
• 2 for per RJ-45 10/100Base-TX port
 - Green, LNK / ACT
 - Green, Speed
Cabling• Ethernet : 10Base-T: 2-pair UTP Cat.3, 4 and 5 up to 100m (328ft)
• Ethernet : 100Base-TX: 2-pair UTP Cat.5, 5e and 6 up to 100m (328ft)
• Coaxial Cable: 50ohm, RG58A / U, RG58C / U, RG58 / U or equivalent; 75ohm, RG-6 (Distance up to 3.0km)
PerformanceAsymmetric:
 200m ->100/65Mbps
 400m ->100/64Mbps
 600m ->100/59Mbps
 800m ->100/53Mbps
 1000m -> 94/44Mbps
 1200m -> 84/36Mbps
 1400m -> 74/28Mbps
 1600m -> 66/19Mbps
 1800m -> 60/14Mbps
 2000m -> 44/15Mbps
 2200m -> 35/12Mbps
 2400m -> 32/10Mbps
 2600m -> 29/8Mbps
 2800m -> 27/6Mbps
 3000m -> 25/5Mbps

Symmetric:
 200m ->99.7/100Mbps
 400m ->100/100Mbps
 600m -> 86/91Mbps
 800m -> 79/80Mbps
 1000m -> 69/66Mbps
 1200m -> 60/52Mbps
 1400m -> 51/41Mbps
 1600m -> 45/36Mbps
 1800m -> 40/29Mbps
 2000m -> 27/26Mbps
 2200m -> 23/24Mbps
 2400m -> 22/21Mbps
 2600m -> 20/18Mbps
 2800m -> 18/15Mbps
 3000m -> 17/13Mbps
Dimensions (W x D x H) 97 x 70 x 26 mm
Weight0.2 kg
Power Requirements5V DC 2A
Power Consumption6.3 watts / 21BTU (maximum)
Standard Conformance
Regulation ComplianceFCC Part 15 Class A, CE
Standards ComplianceIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x full duplex pause frame flow-control
ITU-T
 - G.993.1
 - G.997.1
 - G.993.2 (Profile 17a Support)
Environment
OperatingTemperature: 0 ~ 50 degrees C
Humidity: 5~90%, relative humidity (non-condensing)
StorageTemperature: -10~70 degrees C
Humidity: 5~90%, relative humidity (non-condensing)
* The actual data rate will vary on the quality of the copper wire or coaxial cable and environment
