FNSW-2401 - 24-Port 10/100Mbps Fast Ethernet Switch

FNSW-2401 - 24-Port 10/100Mbps Fast Ethernet Switch
FNSW-2401 - 24-Port 10/100Mbps Fast Ethernet Switch
£51.96
  • Stock: 5-7 Days
  • Model: FNSW-2401
  • MPN: FNSW-2401


Overview

The FNSW-2401provides users with high speed network connections. With its auto-negotiation capability, all the RJ-45/STP ports of the FNSW-2401 can be configured to speeds of 10/20Mbps or 100/200Mbps automatically. What's more the MDI/ MDIX auto-detection is for easy, plug and play connection, regardless of the cabling type, straight through or crossover.Plug and Play

The high performance throughput (filtering/forwarding rate: 14,880 packets per second in 10Mbps, 148,800pps in 100Mbps) and dynamic shared memory buffer help the FNSW-2401 boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. The FNSW-2401 is the ideal choice to alleviate bottlenecks in client / server and peer-to-peer environments in a cost effective way.
High Performance

The intelligent scales power is an intelligent algorithm that actively determines the appropriate power level based on cable length. When connecting to the FNSW-2401 with Ethernet cable longer than 10m, a device can obtain maximum power saving because the FNSW-2401 would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce overall power consumption, which makes a significant contribution to energy saving.

• Intelligent scales power based on cable length
The FNSW-2401 incorporates advanced Green Networking technologies:
Energy Saving

In line with the energy-saving trend worldwide, PLANET delivers the new generation Green Networking Switch- FNSW-2401. The FNSW-2401 is a 24-port 10/100Base-TX Fast Ethernet Switch upgraded from earlier version and brings both benefits of energy saving and high performance. It is specially designed for SOHO, SMB and Workgroup users. The FNSW-2401 uses new engine that provides power saving up to 12% less energy but maintains high performance efficiently. Power-Saving, High Performance Ethernet Networking

Features


 • FCC, CE class A compliant
 • 100~240V AC, 50~60Hz, 0.3A universal Power input
Hardware Features

 • Support CSMA/CD protocol
 • Automatic address learning and address aging
 • Integrated address look-up engine, support 8K absolute MAC addresses
 • Complies with IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
 • Handles up to 1522 bytes packet size
 • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
 • Supports powerful Green Ethernet to power saving
 • Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standard
Layer 2 Features

 • Supports auto MDI/MDI-X function
 • 24 10/100Mbps Fast Ethernet portsPhysical Port

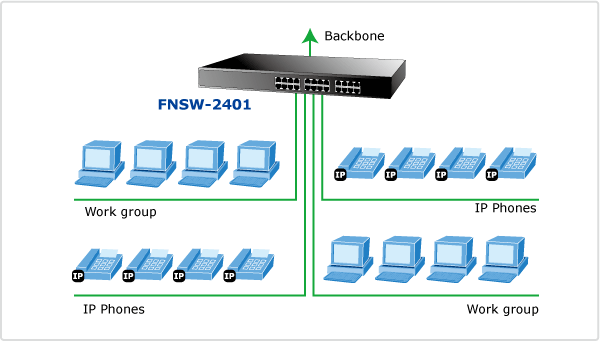

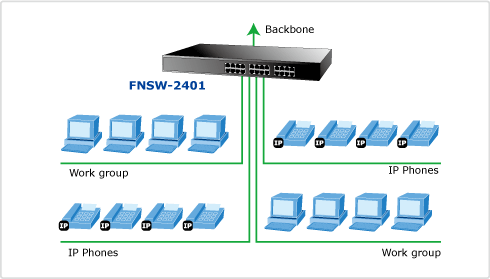

Application

Backbone Switch
 With up to 4.8Gbps switching fabric, the FNSW-2401 can provide high bandwidth connectivity to Fast Ethernet network backbone or as the backbone of your workgroup.

Department Switch
 Uplink directly by any straight / crossover cable to the backbone switch, the FNSW-2401 provides the connectivity to back plane yet segment the network traffic of the department to your backbone.



Specifications


Hardware Specifications
10/100Base-TX MDI/MDIX Ports24
Throughput (packet per second) 3.57Mpps
Switch Fabric 4.8Gbps
Weight 1.7kg
Power Consumption / Dissipation 4 watts / 13 BTU
Power Requirements 100~240V AC, 50/60Hz, 0.3A
Dimensions (W x D x H)440 x 180 x 44mm, 1U height
Switch Processing SchemeStore-and-Forward
Address Table 8K entries
Packet Buffer 2Mbit SRAM
Power Green Ethernet 10m ~ 50m: Saving up to 12%
Flow Control Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
TemperatureOperating: 0~50 degrees C
Storage: -10~70 degrees C
HumidityOperating: 5% to 95%,
Storage: 5% to 95% (Non-condensing)
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Full-duplex Flow Control)



Tags: fnsw2401
