FNSW-1608PS - 16-Port 10/100Mbps with 8-Port PoE Web Smart Ethernet Switch

FNSW-1608PS - 16-Port 10/100Mbps with 8-Port PoE Web Smart Ethernet Switch
FNSW-1608PS - 16-Port 10/100Mbps with 8-Port PoE Web Smart Ethernet Switch
£75.00
£118.17
  • Stock: 5-7 Days
  • Model: FNSW-1608PS
  • MPN: FNSW-1608PS

Overview


For cost saving purpose and providing advanced management functions, PLANET has released the new version of the FNSW-1608PS, the layer 2 web smart switch with PoE injector function built in. The FNSW-1608PS features 16 10/100Mbps Fast Ethernet ports with 8 IEEE 802.3af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on Port 1 to Port 8 which is able to drive 8 IEEE 802.3af compliant powered devices. The PoE power feeding can be set disable / enable and the PoE power consumption can be monitored for effective power usage.

With its auto-negotiation capability, all the RJ-45 / STP ports of the FNSW-1608PS can be configured to speeds of 10/20Mbps / 100/200Mbps (Fast Ethernet) automatically. In addition, the FNSW-1608PS is equipped with the MDI/MDI-X auto detection for easy plug and play connection, regardless of cabling types in straight through or crossover. The FNSW-1608PS also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kinds of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.

The FNSW-1608PS features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increasing bandwidth demands. For efficient management, the FNSW-1608PS switch is equipped with remote Web interface and can be programmed for advanced switch management functions such as SNMP Alert Trap, port configuration, port-based / IEEE 802.1Q / MTU VLAN, port mirroring, port trunk, QoS, bandwidth control, broadcast storm control, MAC address / TCP & UDP filter and IGMP Snooping.


Features

• EMI standards complies with FCC, CE class A• Internal full-range power supply suitable for worldwide use
• 19-inch rack mount size
 Smart discovery utility
• Password setting, IP setting and device description setting through Planet
• Firmware upgrade through Web interface
 interface
• PoE power Disable/Enable and PoE power consumption monitoring by management
• Supports port mirroring function and IGMP Snooping v1 / v2
 each port
• Supports QoS, bandwidth control and MAC address filter / TCP & UDP filter on
 800Mbps bandwidth
• Supports up to 2 Trunk groups, each trunk for up to maximum 4 ports with
• Supports up to 16 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
• Broadcast Storm Control support
• SNMP Trap for alarm notification of events
• Remote Web interface for Switch management and setup
• 2.75Mb embedded memory for packet buffers
• 4K MAC address table, automatic source address learning and ageing
 runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
• High performance Store and Forward architecture, broadcast storm control,
 frame flow control (Full-duplex)
• Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE
• Auto-MDI / MDI-X detection on each RJ-45 port
• Each Switching port supports auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) supported
• 8-Port support 48VDC power to PoE Powered Device (Port 1 to port 8)
• 16-Port 10/100Mbps with 8-Port PoE Web Smart PoE Switch
• Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard

Applications

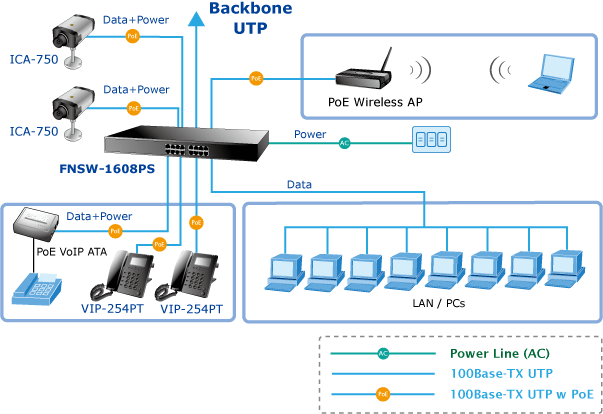

Department / Workgroup PoE Switch:
With 16 10/100Mbps ports, the FNSW-1608PS provides a cost-effective and high-performance solution for power users. With its 3.2 Gigabits per second, non-blocking switch fabric, this device can easily provide a local, high bandwidth Fast Ethernet network for your departmental backbone. Providing up to 8 PoE, in-line power interface, the FNSW-1608PS can easily build a power centrally-controlled IP phone system, IP camera system and AP group for the enterprise. For instance, 8 cameras / APs can be easily installed around the corner in the company for surveillance demands or to build a wireless roaming environment in the office. Without the power-socket limitation, the FNSW-1608PS makes the installation of cameras or WLAN AP easier and more efficient.



Specifications


Hardware Specifications
Fast Ethernet Ports 16 10/ 100Base-TX RJ-45 Auto-MDI / MDI-X ports
Power over Ethernet ports 8-Port with PoE injector function (Port 1 to port 8)
Switch Processing Scheme Store-and-Forward
Throughput (packet per second) 2.38Mpps
Switch fabric 3.2Gbps
Address Table 4K entries
Share data Buffer 2.75Mb embedded memory for packet buffers
Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Dimensions (W x D x H) 440 x 120 x 44 mm (1U height)
Weight 1.75 kg
Power Requirements 100-240V AC, 50-60 Hz, 1A
System Operating Power Consumption / Dissipation (Full load)123 watts / 419.43BTU
Temperature Operating: 0~50 degrees C
Storage: -40~70 degrees C
Humidity Operating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Power Pin Assignment 1/2(+), 3/6(-)
Power Budget 110 watts
Smart functions
System Configuration Web interface
Alert Trap SNMP Trap for alarm notification of events
Port configuration Port speed duplex mode selection. Flow control disable / enable. Port disable / enable. Port description on each port
Bandwidth Control Yes, 1Mbps / 2Mbps / 4Mbps / 8Mbps / 16Mbps / 32Mbps / 64Mbps
Broadcast Storm Control Yes, 5% / 10% / 25% / 50% / Disable
Port Statistics Display each port's detail Ethernet traffic counter information
VLAN 16 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
Port trunking Supports 2 groups of 4-Port trunk support, up to 800Mbps bandwidth per trunk
Port Mirroring Port mirroring allows monitoring of the traffic across any port in real time
QoS Allows to assign low / high priority on each port
First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
MAC address / TCP & UDP filter Yes
IGMP Snooping v1 / v2 Allows to disable or enable
PoE power control Allows to disable or enable power provision and assign priority on each PoE port
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Standards Compliance IEEE 802.3:Ethernet
IEEE 802.3u:Fst Ethernet
IEEE 802.3x:Full-duplex Flow control
IEEE 802.3af:Power over Ethernet
IEEE 802.1Q:VLAN
IEEE 802.1p:QoS
The above specifications are for the FNSW-1608PS hardware version 2 only.
