MC-700 - 7-Slot Media Converter Chassis

MC-700 - 7-Slot Media Converter Chassis
MC-700 - 7-Slot Media Converter Chassis
£154.75
  • Stock: In Stock
  • Model: MC-700
  • MPN: MC-700

Overview

High Density Chassis for Multiple Converter Installation
PLANET MC-700 provides 7 slots in the 10” rack which saves more spaces for fiber-optic wiring yet eases the maintenance of media conversion. It allows the connectivity of up to seven PLANET Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 Converters in one chassis. One fan is built-in for system cooling and its status can be watched by the LED indicators in the MC-700.

Plug and Play / Flexible Installation
The MC-700 offers a flexible and scalable solution to media converter installation. There is an independent power supply in each slot of the MC-700, so that any converter is hot-swappable without causing interruption to other converters. The media converters can be plugged and played anytime. Each bay of the MC-700 can be populated with any of PLANET’s media converter series, the FT, GT, VC-20x and ICS series, to provide media conversion between fiber optic, phone wire and serial to copper lines.


Features

 –Supports Serial over Ethernet Converter: ICS-10x series –Supports VDSL2 Media Converter: VC-201A / VC-231
 –Supports PLANET Fast Ethernet, Gigabit Ethernet Media Converter series: FT-80x / FT-90x and GT-70x / GT-80x / GT-90x
• Compatibility

 –Power protection from over voltage, over current and short circuit
 –Power isolation in each bay
 –100~240V AC power supply
• Power System

 –Reduces the effort of converter maintenance and management and can diagnose the status of converters at one time
 –One fan built-in for hardware cooling
 –Supports up to seven hot-swappable media converters
 –Enables the converters to use Plug and Play
 –High quality 10” Rack-mountable chassis installation
• Hardware

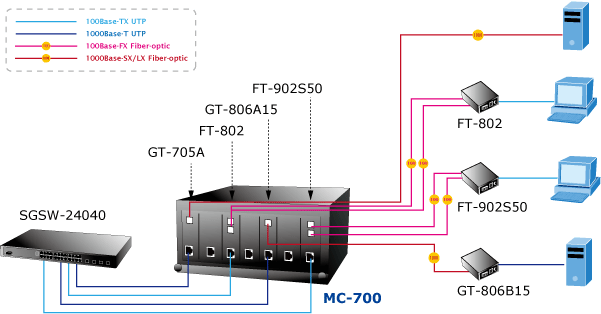

Applications


Centralized Media Converter Management
PLANET MC-700 provides advanced Media conversion technology to meet the growing demand for the current network. The media converter chassis allows to install up to seven PLANET FT-8 / FT-9 / GT-7 / GT-8 Fast / Gigabit Ethernet media converters with diverse options of fiber connecting type to fit in different network applications. It is very flexible for FT-8 / FT-9 / GT-7 / GT-8 series being installed in the MC-700 for centralized power feeding and media conversion management.





Specifications


Product
Dimensions (W x D x H)217 x 140 x 88.5 mm (W x H x D) , 2U height
Converter slots7 slots
Power Input100~240V AC, 50/60Hz
Power Consumption40 watts (maximum) / 136BTU
Power Output per slot+5V DC
DC Plug per slot2.5 mm DC receptacle
LED indication2; Power, Fan
Fan1
Temperature Operating: 0~50 degrees C
Storage: -40~70 degrees C
HumidityOperating: 5~90% non-condensing
Storage: 5~90% non-condensing
EmissionFCC Part 15 Class A, CE


Tags: mc700
