IGS-801T - 8-Port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 degrees C)

IGS-801T - 8-Port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 degrees C)
IGS-801T - 8-Port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 degrees C)
£125.80
  • Stock: 5-7 Days
  • Model: IGS-801T
  • MPN: IGS-801T

Overview

Slim Type with More Practicability and Convenience
PLANET IGS-801T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 8 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.Its compact IP30-rated metal case features either DIN rail or wall mount for the efficient use of cabinet space.

Energy Saving with Lower Power Consumption
The IGS-801T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features makes the IGS-801T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

Green Networking
With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) Protocol, the IGS-801T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switches to consume less power when they are less active.

Stable Performance under Difficult Environments
The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs.


Robust Switch Performance
The IGS-801T offers high-performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 4K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables the IGS-801T to provide fast and reliable data transfer. The Gigabit port with 9K jumbo frame supported can handle extremely large amounts of data transmission in the industrial topology that forward data to central control room.

Plug and Play
All of the RJ45 copper interfaces in the IGS-801T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.


Features

Industrial Case and Installation

  • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standard
  • Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode
  • High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 4K absolute MAC address and 16Gbps switching fabric support
  • 1.5Mbits SRAM packet buffer
  • 9K jumbo packet size support
  • IEEE 802.1p CoS support
  • Automatic address learning and address aging
  • CSMA/CD Protocol

Layer 2 Features

  • 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function

Physical Port

  • IP30 metal case
  • DIN rail and wall-mount design
  • 12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
  • -40 to 75 degrees C operating temperature


Applications

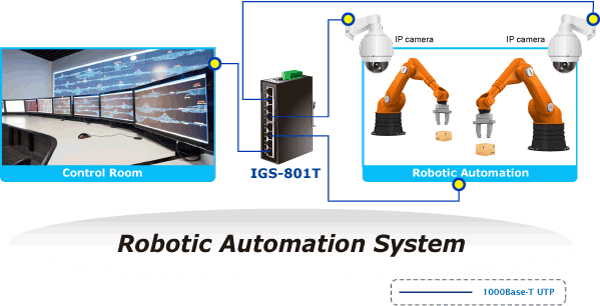

Industrial area switch for data collection and forwarding
The IGS-801T is equipped with 8 10/100/1000Mbps ports that offer auto MDI / MDIX feature, 16 Gbps non-blocking switch fabric and the 8K MAC Address table so that it can perform wire-speed packets transfer without risk of packet loss. The Gigabit ports supporting 9K jumbo packet can handle large amounts of data transmission in a secure topology linking to a backbone switch or high-power servers. The IGS-801T with the slim type IP 30 metal shape is ideal for most heavy industrial demanding environments.



Specifications


Hardware Specifications
10/100/1000BASE-T Ports8
Dimensions (W x D x H)135 x 87 x 32 mm
Weight461g
Power Requirements12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption/ Dissipation6.72 watts/23BTU
InstallationDIN rail kit and wall-mount ear
Switch Specifications
Switch Processing SchemeStore-and-Forward
Address Table4K
Buffer1.5Mbits SRAM packet buffer
Flow ControlBack pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric16Gbps
Throughput (packet per second)11.9Mpps
Jumbo Frame9K
Network Cables10/100/1000BASE-T:
Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, max.)
Standards Conformance
Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
TemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees C
HumidityOperating: 5% to 95%, Storage: 5% to 95% (non-condensing)
Regulatory ComplianceFCC Part 15 Class A, CE
