GSW-2401 - 24-Port 10/100/1000Mbps Gigabit Ethernet Switch

GSW-2401 - 24-Port 10/100/1000Mbps Gigabit Ethernet Switch
GSW-2401 - 24-Port 10/100/1000Mbps Gigabit Ethernet Switch
£84.08
  • Stock: 5-7 Days
  • Model: GSW-2401
  • MPN: GSW-2401


Overview

Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking
PLANET GSW-2401 Gigabit Ethernet Switch provides 24 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 24 Gigabit ports that support 10K jumbo frame feature. Therefore, the GSW-2401 can handle an extremely large amount of data transmission in a secure topology linking to a backbone or high-power servers.

High Performance
The GSW-2401 provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 48Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-2401 enables routers and servers to directly connect to the Switch for fast and reliable data transfer.

All the RJ45 copper interfaces in the GSW-2401 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Excellent Traffic Transmission
The GSW-2401 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-2401 recognizes up to 8K different MAC addresses. The high data throughput and 48Gbps internal switching fabric make it ideal for most Gigabit network environments, especially helpful for upgrading network to a Gigabit environment.

Fanless Design
With its good ventilation design,the GSW-2401 is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. The GSW-2401 is definitely the best choice for any working environment without affecting its performance.


Features

Hardware Features

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrated address look-up engine, supporting 8K absolute MAC addresses
  • 10K jumbo packet support
  • Power Saving ability for Green networking
  • IEEE 802.1Q VLAN packet transparent support
  • IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
  • Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control, and auto-negotiation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Layer 2 Features

  • 24 10/100/1000BASE-T Gigabit Ethernet ports
  • Supports auto MDI/MDI-X function

Physical Port

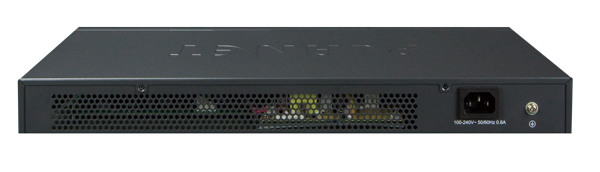

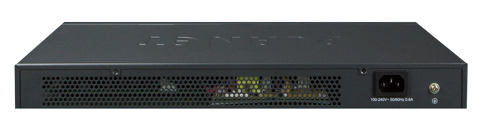

  • 100~240V AC, 0.6A, 50~60Hz universal power input
  • FCC, CE Class A compliant

Applications

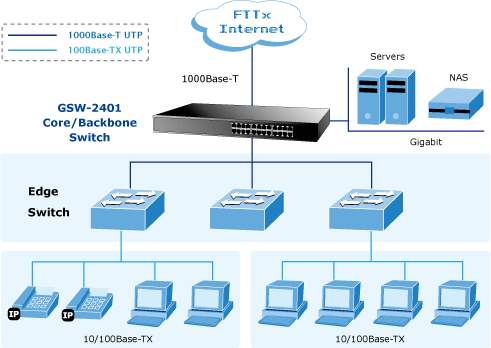

Backbone Switch
With up to 48 Gigabits per second of non-blocking switch fabric, the GSW-2401 can easily provide high bandwidth for both today’s and future requirements.

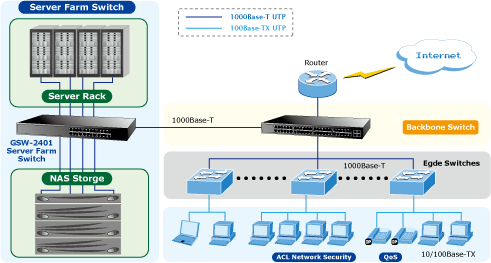

Server Farm Switch
Providing 24 Gigabit Ethernet ports, the GSW-2401 is ideal to be used as a server farm switch connecting to your servers and powerful desktops.



Specifications


Hardware Specifications
Hardware VersionVersion 7
10/100/1000BASE-T MDI/MDIX Ports24
Throughput (packet per second)35.7Mpps
Switch Fabric48Gbps/non-blocking
Weight1.9kg
Power Consumption/Dissipation13.5 watts/46 BTU
Power Requirements100-240V AC, 0.6A, 50/60Hz
Dimensions (W x D x H)440 x 180 x 44 mm, 1U height
Switch Processing SchemeStore-and-Forward
Address Table8K entries
Jumbo Packet Size10K
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE
Standard ComplianceIEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Full-duplex flow control)
Environmental Specifications
TemperatureOperating: 0~50 degrees C
Storage: -10~70 degrees C
HumidityOperating: 5~95%
Storage: 5~95% (non-condensing)
* The specifications are for the GSW-2401 hardware version 7 only.
