VIP-1010PT - High Definition PoE IP Phone (1-Line)

VIP-1010PT - High Definition PoE IP Phone (1-Line)
VIP-1010PT - High Definition PoE IP Phone (1-Line)
£45.43
£56.70
  • Stock: 5-7 Days
  • Model: VIP-1010PT
  • MPN: VIP-1010PT

Overview


Cost-effective, High-performance PoE VoIP Phone
To build high-performance VoIP communications at a low cost, PLANET has integrated high-definition voice into a cost-effective SIP phone. It complies with IEEE 802.3af PoE interface for flexible deployment. The VIP-1010PT makes it simple for the enterprise featuring voice and data system or expanding voice system to new locations. It helps the company to save money on long-distance calls; for example, the remote workers can dial in through a Unified VoIP Communication System just like an extension call but no long-distance call charge would occur. The VIP-1010PT also allows call to be transferred to anyone at any location within the voice system, which enables the enterprise to communicate more effectively and is helpful to streamline business processes.


High-quality HD VoIP Voice
The VIP-1010PT delivers HD voice which is the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony and even close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50 Hz to 7 kHz or higher over telephone lines, resulting in higher quality voice and clearer communication.


Standard Compliance
The VIP-1010PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-1010PT is able to broadly interoperate with equipment provided by VoIP infrastructure providers, thus enabling them to provide their customers with better multi-media exchange services.


Enhanced, Full-Featured Business IP Phone
The VIP-1010PT is a full-featured, enhanced business IP phone that addresses the communication needs of the enterprises. It provides one voice line and dual 10/100Mbps Ethernet. Furthermore, the VIP-1010PT delivers user-friendly design containing a 132x64 graphic LCD with white backlight.

The VIP-1010PT supports all kinds of SIP-based phone features including LDAP, Call Waiting, Auto Answer, Music on Hold, Caller ID 3-way Conferencing, Call on Hold, Call Forwarding, Black List, DTMF Relay, In-Band, Out-of-Band (RFC 2833) and SIP Info, among others. Besides office use, the VIP-1010PT is also the ideal solution for VoIP service offered by Internet Telephony Service Provider (ITSP).



Features


Highlights
  • Supports SIP 2.0 (RFC3261)
  • Supports 1 SIP voice line
  • IEEE 802.3af Power over Ethernet compliant
  • Supports HD voice
  • LDAP/TR-069/SNMP

Phone Features
  • 1 line (supporting 1 SIP account)
  • Supports call waiting, call forwarding, call transfer
  • 3-way conferencing
  • Call on hold, mute, auto-answer, redial
  • Phonebook (500 groups), blacklist (100 groups), call logs (100 entries)
  • 5 remote phone book URL supported
  • Keypad lock
  • DND (Do Not Disturb)
  • Volume adjustable, ring tones selectable
  • Call pickup/group call pickup
  • Speed dial
  • Intercom
  • Daylight saving
  • Network packet capture
  • Country ringtone signal
  • Direct IP call
  • Auto redial/hot desking
  • Hotline/XML browser/action URL
  • Multi-languages by default: English and Simplified Chinese

IP PBX Feature
  • HD voice
  • Dial plan
  • SMS, voicemail, MWI message notification
  • Wideband codec: G.722
  • Narrowband codec: G.711 (A-law and µ-law), G.729, G.722, G723, G726
  • VAD, CNG , echo canceller
  • Full-duplex speakerphone

Security Features
  • Supports HTTPS (SSL)
  • Supports SRTP for voice data encryption
  • Supports login for administration
  • SIP over TLS

Network Features
  • SIP V1 (RFC2543), V2 (RFC3261)
  • Static IP/DHCP for IP configuration
  • 3 DTMF modes: In-band, RFC2833, SIP info
  • HTTP/HTTPS Web server for management
  • NTP for auto time setting

Administration Features
  • Auto provisioning using FTP/TFTP/HTTP/HTTPS/PnP
  • Dial through IP PBX using phone number
  • Dial through IP PBX using URL address
  • Configuration managements with Web, keypad on the phone and auto provisioning
  • SNMP
  • TR069


Applications

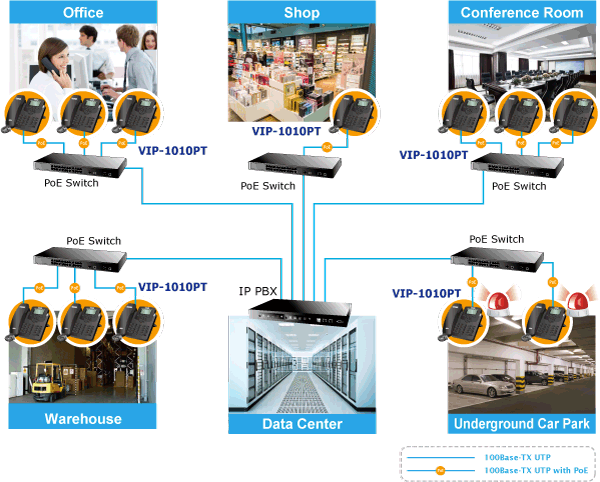

Enterprise IP Telephony Deployment of VIP-1010PT
The VIP-1010PT is much easier to install and configure than the traditional phone system. Its low cost and high-definition voice quality give you value for money. Base on standard SIP 2.0, it is compatible with all the standard SIP-based servers.



 Specifications

Hardware
Lines (direct numbers)1-line cost-effective IP phone
Display132 x 64 graphic LCD with blue backlight
Feature Keys4 soft keys
10 programmable keys
Protocols and Standard
Data NetworkingMAC address (IEEE 802.3)
IPv4 (RFC 791)
Address Resolution Protocol (ARP)
DNS: A record (RFC 1706), SRV record (RFC 2782)
Dynamic Host Configuration Protocol client (RFC 2131)
TCP (RFC 793)
User Datagram Protocol (RFC 768)
Real-time Protocol (RFC 1889, 1890)
Real-time Control Protocol (RFC 1889)
Simple Network Time Protocol (RFC 2030)
Backward compatible with RFC 2543
Session timer (RFC 4028)
SDP (RFC 2327)
Voice GatewaySIP version 2 (RFC 3261, 3262, 3263, 3264)
Message waiting indicator (RFC 3842)
Voice algorithms:
- G.711 (A-law and µ-law)
- G.729
- G.722
- G723
- G726
Dual-tone multi-frequency (DTMF), in-band and out-of-band (RFC 2833) (SIP info)
Voice activity detection (VAD) with silence suppression
Comfort noise generation
Echo cancellation message
Features
Phone Features1-line (supporting 1 SIP account)
Supports call waiting, call forwarding, call transfer
3-way conferencing
Call on hold, mute, auto-answer, redial
Phonebook (500 groups), blacklist (100 groups), call logs (100 entries)
5 remote phone book URLs supported
LDAP
DND (Do Not Disturb)
Volume adjustable, ring tones selectable
Call pickup/group call pickup
Speed dial
Intercom
Daylight saving
Network packet capture
Country ringtone signal
Direct IP call
Auto redial
Hotline
XML browser
Hot desking
Keypad lock
Action URL
Multi-languages by default: English and Simplified Chinese
IP PBX FeaturesHD voice
Dial plan
SMS, voicemail, MWI message notification
Wideband codec: G.722
Narrowband codec: G.711 (A-law and µ-law), G.729, G.722, G723, G726
VAD, CNG, echo canceller
Full-duplex speakerphone
Security FeaturesSupports HTTPS (SSL)
Supports SRTP for voice data encryption
Supports login for administration
SIP over TLS
Dial without registration
Network FeaturesSIP V1(RFC2543), V2(RFC3261)
Static IP/DHCP for IP configuration
3 DTMF modes: In-band, RFC2833, SIP info
HTTP/HTTPS Web server for management
NTP for auto time setting
Administration FeaturesAuto provisioning using FTP/TFTP/HTTP/HTTPS/PnP
Dial through IP PBX using phone number
Dial through IP PBX using URL address
Configuration managements with Web, keypad on the phone and auto provisioning
SNMP
TR069
Environments
Power Requirements5V DC, 1A
IEEE 802.3af
Operating Temperature0 ~ 40 degrees C
Operating Humidity10 ~ 65% (non-condensing)
Weight 651g (without box) / 920g (with box)
Dimensions (W x D x H)193 x 190 x 35 mm
EmissionCE, FCC
ConnectorsTwo 10/100BASE-TX RJ45 Ethernet ports
Handset: RJ9 connector
Headphone: RJ9 connector
DC power jack
Built-in speakerphone and microphone
