SD-101 Indoor PoE Surge Protector

SD-101 Indoor PoE Surge Protector
SD-101 Indoor PoE Surge Protector
SD-101 Indoor PoE Surge Protector
SD-101 Indoor PoE Surge Protector
SD-101 Indoor PoE Surge Protector


The SD-101 Indoor surge protector is proven to keep PoE switches, PoE PDs, and other IP devices safe from lightning and other forms of electrical interference, including power surges and spikes over networking cables.

wo sub-models (the SD-101 and SD-201) are classified as hardened-grade surge protectors, and will operate in harsh weather conditions from -40°C to 85 °C.


The SD-101 is designed to be deployed besides PoE switches, or inside junction or power boxes. With a robust operating temperature range, the SD-101 will prevent surges of up to 16KV and features plug-and-play installation.


- Supports Ethernet switches equipped with Gigabit PoE (802.3af / 802.3at / 60W UPoE / 95W UPoE)


- Protects eight wires of networking cable including PoE


- Protects up to 16KV surge


- Failure Indicator


- Operating temperature from -40°C to 85 °C


- Wall-mounted


Hardware Specification


Number of Ports

Pass Through Data Rates

10/100/1000 Mbps

Max Discharge Current (8/20us, 1KA per Line)

8KA,16KV

Maximum Operation DC Voltage

60VDC

Maximum Operation DC Current

1A for 2 pair, 2A for 4 pair, 95W maximum

Common Mode Protection Level (10/700us)

20KV

Common Mode Protection Level (10/700us)

Differential Mode Protection Level (10/700us

4KV

Clamping Voltage (Line to GND)

600V

Clamping Voltage (Line to Line)

20V

Insertion Loss @ 10MHz/100MHz

1db

Return Loss @ 10MHz/100MHz

-20db

Response Time

5ns


Mechanical Specifications

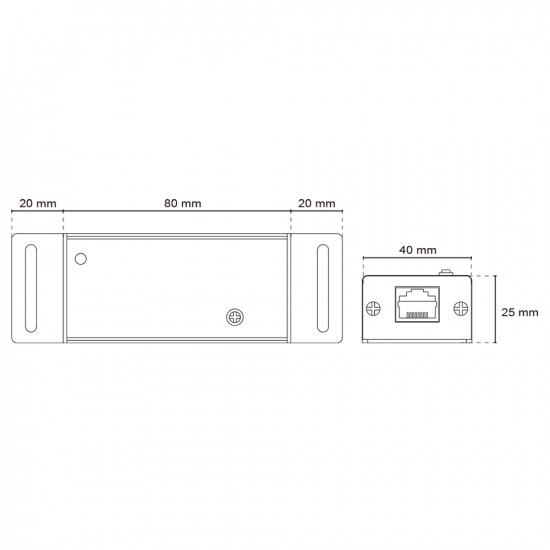

Dimension (WxHxD)

80 x 40 x 25 mm

Weight

0.18KG

Connectors

RJ45 x 2


Environmental Specifications


Operating Temperature

-40°C~ 85°C (-40°F~ 185°F)

Storage Temperature

-40°C~ 85°C (-40°F~ 185°F)

Operating Humidity

5% ~ 95% non-condensing


Certifications


EMC

CE, FCC, VCCI, C-Tick Class B

Surge

ITU-T K.21

IEC-61643-21

IEC-61000-4-5

TIA-968-A (FCC Part68)
