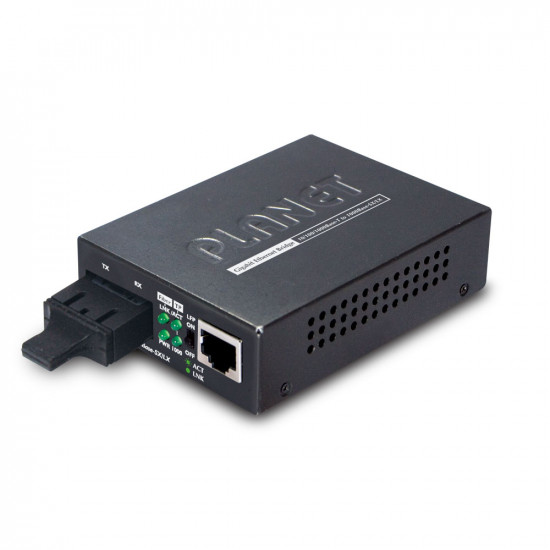

GT-802S - 10/100/1000Base-T to 1000Base-LX Media Converter (SC,SM)-10km

£63.20

Stock: 5-7 Days
Model: GT-802S
MPN: GT-802S

Add to Cart Request A Quote

Ask Question

Add to Wish List Compare this Product

Planet GT-802S 10/100/1000Base-T to 1000Base-SX (SC,MM) Gigabit Media Converter

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ-45 port and highly stable Gigabit fiber performance, PLANET GT-802S media converter support conversion between 10/100/1000Base-T and 1000Base-LX network.

The GT-802S has fixed SC Fibre Interface connectors and operates over singlemode fibre infrastructure.

The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.

Distance Extension with High Performance and Steady Network Communications

PLANET GT-802S gigabit media converter extends communications distance with highly Gigabit performance via fibre optic cable.

The GT-802S provides media conversion between 10/100/1000Base-T and 1000Base-LX interfaces such as singlemode SC connectors (10km), for various fibre optic applications.

Enhanced Smart Management Features

The GT-802S provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass-through function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide an efficient solution to monitoring the net. The DIP switch can disable or enable the LFP function. The LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission. The LLR (Link Loss Return) means when a device connected to the converter and the fibre line loses the link, the converter’s fibre will disconnect the link of transmission. Both can immediately alarm administrators the problem of the link media and provide an efficient solution to monitoring the net.

Moreover, Even the web UI is not available on GT-802S, the network manager can still remotely control and monitor GT-802S by OAM TS-1000 terminal function such as remote failure indication, loop back test, port status, performance monitoring and troubleshooting.

Easy Installation

The GT-802S allows two types of the segment to connect easily. The GT-802Scan be used as a standalone unit or point-to-point unit when powered by its DC adapter, or it used as a slide-in module to Planet 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R). These media chassis can assist in producing the power for the GT-802S to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX, the Gigabit media conversion installation is quite quick and easy with its plug and play feature. The GT-802S also supports flow control and back pressure in half-duplex to eliminate packet loss.

- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-LX

- TP port supports 10/100/1000Base-T auto-negotiation and auto-MDI/MDI-X.

1000Base-LX: 9/125μm single-mode cable provides long distance for 10km

- 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters.

- Layer 2 key Feature

IEEE 802.3x full-duplex flow-control and back-pressure in half-duplex eliminate the loss of packets

–Supports auto MDI/MDI-X function

–Store-and-Forward mechanism

– Non-blocking full wire-speed forwarding rate

- Media conversion between 10/100/1000Base-T and 1000Base-LX.

- Fibre media allows:

–Single-mode fibre using SC connector

- Compact size for working with PLANET MC family media chassis MC-700 / MC-1500 / MC-1500R / MC-1500R48

- Wall-mountable design

- LED indicators for easy network diagnostics

- Provides DIP switch for LFP function (Disable / Enable) setting

- OAM TS-1000 supported

- 9K Jumbo Frame Supported

- Compact in size, easy installation

Hardware Version

Standards

IEEE 802.3, 10Base-T

IEEE 802.3u, 100Base-TX

IEEE 802.3ab, 1000Base-T

IEEE 802.3z, 1000Base-LX

Ports

1 x 10/100/1000Base-T port,

1 x 1000Base-LX port

Copper Interface

RJ-45 port (Auto-MDI/MDI-X) Twisted Pair

Optic Interface

Fiber Maximum Distance

Optic Wavelength

1310nm

Max. Optical Launch Power

-3dBm

Min. Optical Launch Power

-9.5dBm

Max. Input Power

GT-802S: -3

Min. Input Power

Optical Link Budget

4.9dB

Speed

Twisted-pair:

　　10/20Mbps for half/full-duplex

　　100/200Mbps for half/full duplex

　　2000Mbps for full-duplex

Fiber-optic:

2000Mbps for full-duplex

Cable Twisted-pair

10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m

100Base-TX: 2-pair UTP Cat. 5, up to 100m

1000Base-T: 4-pair STP Cat 5 up to 100m

Fiber-optic Cable

9/125μm single-mode cable, providing long distance for 10km

LED Indicator

TP LINK/ACT, 1000

Fiber LINK/ACT

DIP Switch

LFP function (Disable / Enable) setting

OAM

TS-1000 and IEEE 802.3ah Terminal mode supported

Jumbo Packet Size

Power Consumption

4.6 watts / 15 BTU (maximum)

Power Input

DC 5V / 2A

Dimensions (W x D x H)

2.6 x 7.0 x 9.7 cm

Weight

0.2kg (0.6kg boxed w/contents)

Operating Environmentment

Operating temperature:

0 to 50 degrees C; Humidity: 5~95% non-condensing

Storage Environment

storage temperature:

-10 to 70 degrees C; Humidity: 5~95% non-condensing

Emissions

FCC Class A, CE Class A

Fiber-optic Networking for ISPs, Enterprises, and homes

With high performance of data transmission and easy installation, the GT-802S can build the ISP network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fibre to the Building), for small office network environment of enterprises.
